OEM Case Study: Precision Custom Sheet Metal Enclosures for Electronic Equipment

Project Overview: Engineering Protection for Advanced Electronics In the fast-paced and highly competitive electronics industry, protecting sensitive internal components is just as critical as the hardware itself. Without a robust, precision-engineered housing, delicate PCBs (Printed Circuit Boards), microprocessors, and power supplies are vulnerable to physical impact, thermal overload, and environmental contamination.

Cangzhou Deeplink International Supply Chain Co., Ltd. recently partnered with a leading technology OEM client to manufacture high-precision custom sheet metal enclosures for their new line of advanced electronic equipment. These housings required strict dimensional accuracy to ensure seamless internal mounting, excellent heat dissipation properties for continuous operation, and a flawless powder-coated surface finish to meet strict consumer-grade aesthetic demands. Furthermore, the enclosures needed to provide reliable EMI/RFI (Electromagnetic and Radio Frequency Interference) shielding to comply with international electronic safety standards.

Core Manufacturing Metrics & Process Flow Leveraging our 10+ years of custom manufacturing experience and our expansive 5,000+ sqm processing workshop, our engineering team took a proactive approach. We conducted a comprehensive DFM (Design for Manufacturability) review long before any tooling began. By optimizing the bend radii, standardizing the hole sizes, and refining the tolerance stack-up, we minimized production risks, optimized material yield, and significantly reduced the overall cost per unit.

• Material Selection & Property Analysis: For this project, the client required a balance between lightweight construction and rigid protection. We selected high-grade aluminum alloys for the main chassis due to their optimal weight-to-strength ratio and superior thermal conductivity, which is essential for passive cooling. For internal structural brackets, carbon steel and pre-galvanized sheets were utilized to ensure structural integrity and grounding continuity.

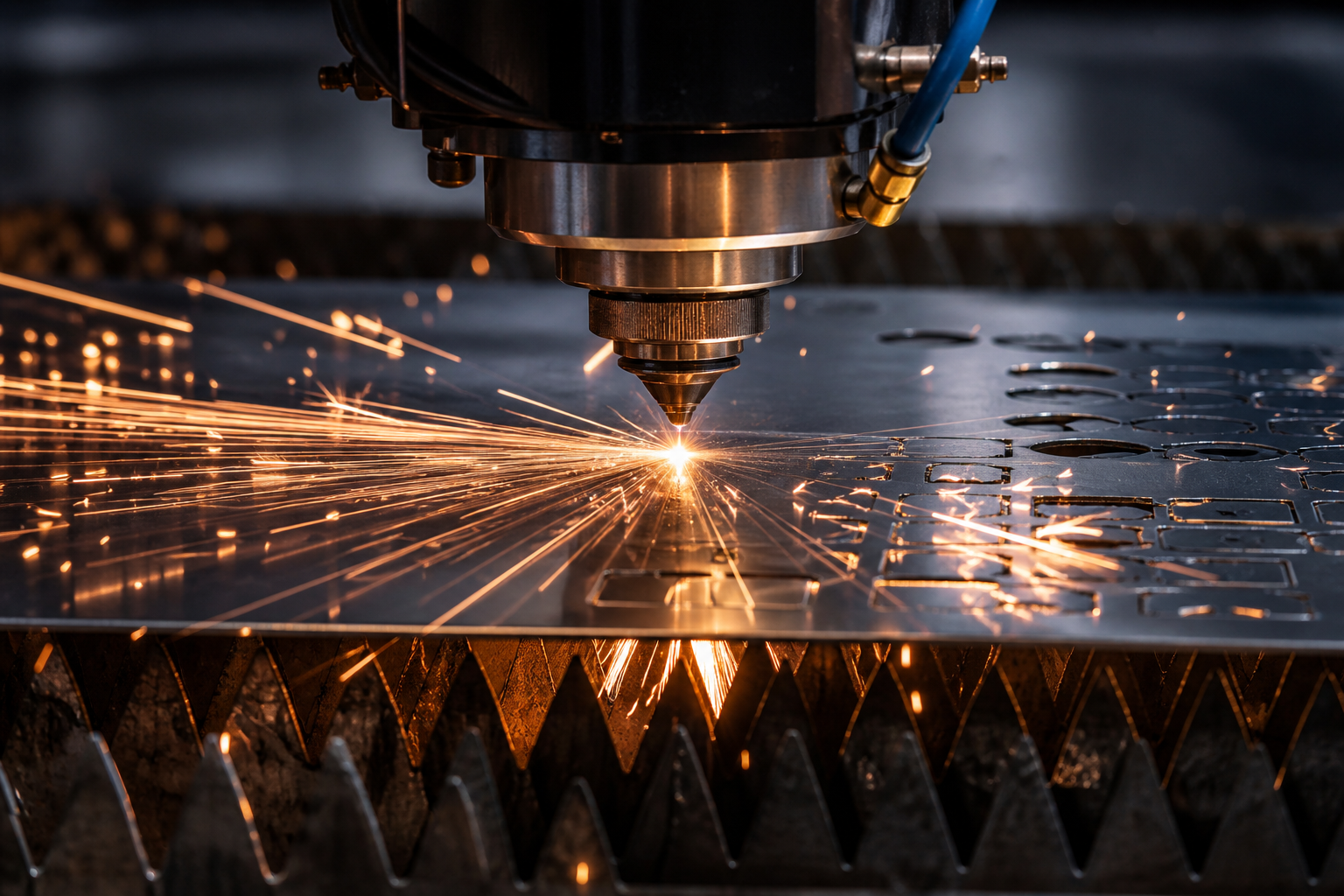

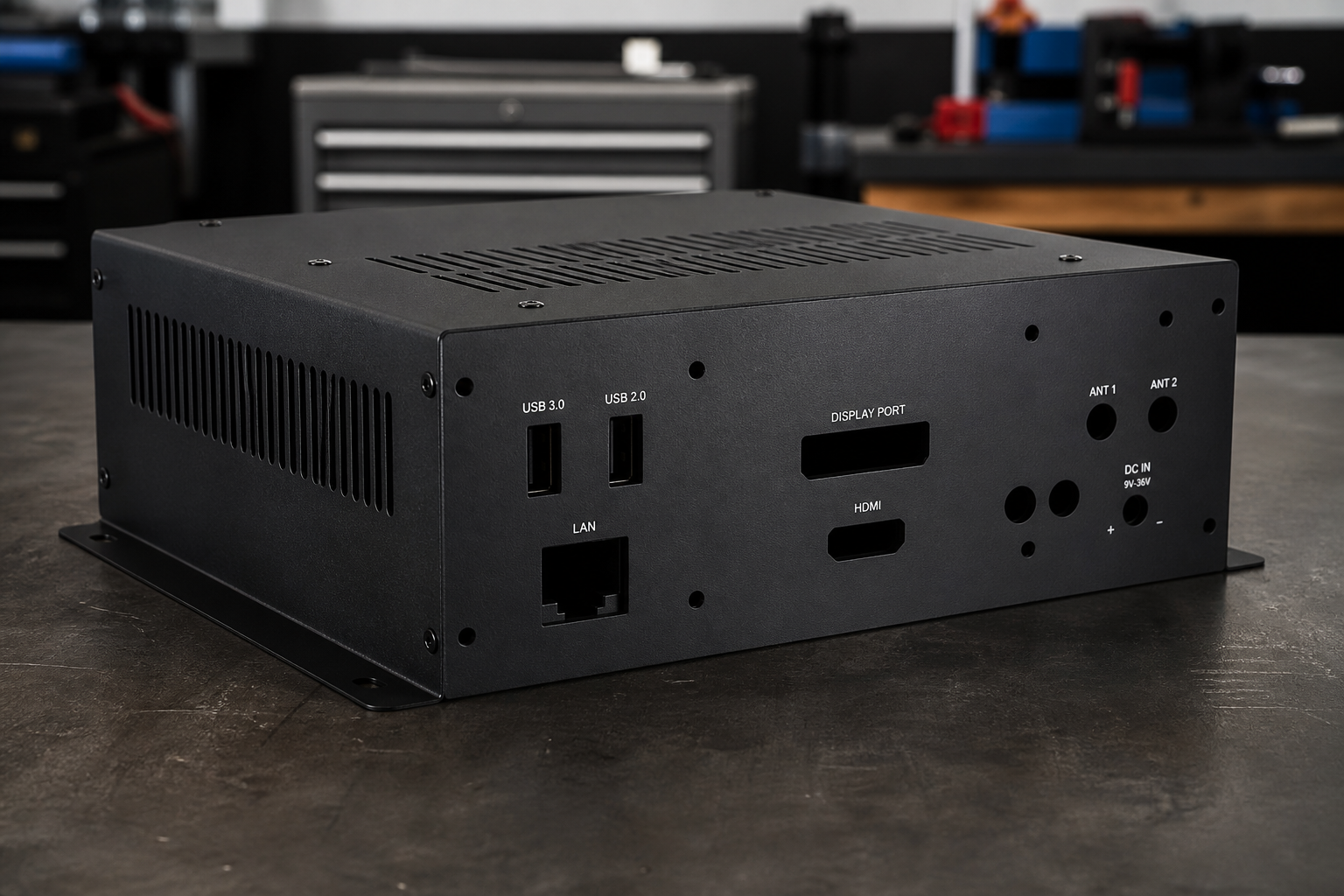

• High-Speed Laser Cutting & Profiling: The complexity of electronic enclosures often lies in the precise arrangement of connector interfaces, I/O ports, and intricate ventilation slots. These complex geometries were processed through our Laser Cutting and Profile Processing division. Utilizing our advanced 12kW fiber laser equipment, we achieved burr-free edges, minimal thermal distortion (heat-affected zones), and rapid scaling from initial prototypes to high-volume production runs.

• Forming & Progressive Stamping: For the standardized internal mounting brackets and repeating structural elements, we transitioned the production to our Progressive Die Metal Stamping lines. This technology ensures high-speed, cost-effective production while maintaining absolute dimensional consistency across thousands of units.

Surface Treatment: Tight Flatness, EMI Shielding, and Finish Control Electronic housings demand more than just structural strength; they require a durable and visually appealing exterior that aligns with the brand's identity. After the initial Custom Sheet Metal Fabrication and bending processes, the enclosures underwent meticulous surface preparation.

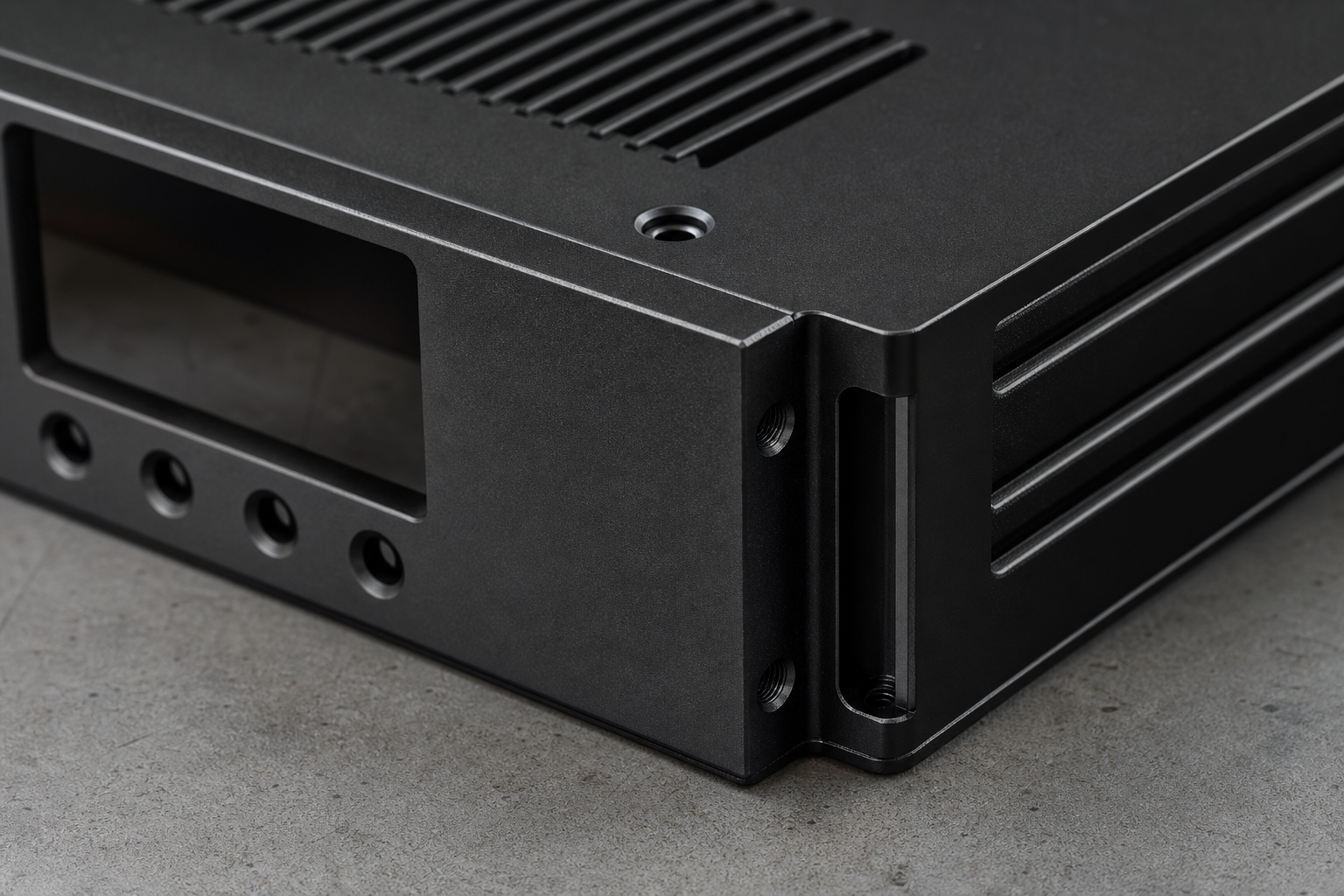

First, specific internal contact points were masked off to ensure clean metal-to-metal contact, which is vital for maintaining electrical grounding and effective EMI shielding. Following this, we applied a premium, fine-textured powder-coating process. This finish provides superior resistance to corrosion, environmental moisture, daily scratches, and wear.

Crucially, our fabrication team maintained tight flatness control throughout the welding, grinding, and high-temperature curing stages. Heat distortion during welding or powder curing can cause warped panels, which leads to misalignment during final assembly. By tightly controlling thermal inputs, we ensured that the final enclosures assembled seamlessly with the client's internal PCBs, display bezels, and external covers, leaving zero unsightly gaps.

ISO 9001 Certified Quality Assurance & Traceability Consistency across volume batch production is the cornerstone of our OEM service. Unlike common market practices that may only perform rudimentary visual checks before packing, Deeplink operates under a strict ISO 9001 certified quality management system. Every production run is subjected to over 39 specific, documented QA checks.

For these sensitive electronic enclosures, our rigorous inspection protocol included:

1. Incoming Material Inspection: Verifying material certificates (MTRs) and conducting dimensional checks on the raw aluminum and steel sheets before any cutting begins.

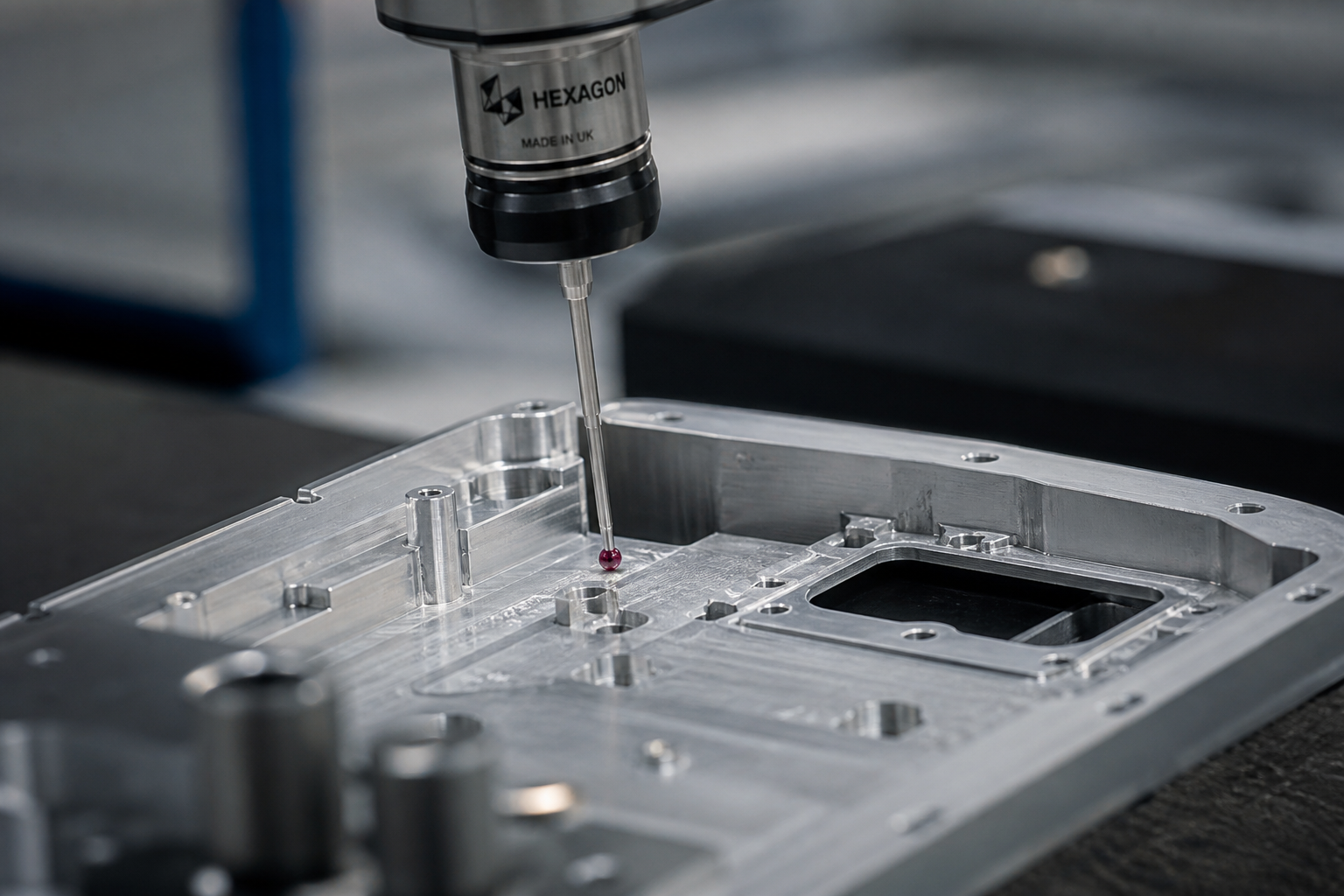

2. First Article Inspection (FAI): Initial samples are heavily scrutinized against the client's original CAD drawings to verify all bend angles, hole placements, and tolerances before batch production is authorized.
3. In-Process Monitoring: Regular dimensional and flatness checks are performed throughout the manufacturing cycle to prevent any deviation accumulation or tooling wear issues.
4. Final Inspection & Packaging: A thorough evaluation of the powder-coating thickness, color consistency, and assembly fitment is conducted. Finally, the enclosures are custom-packaged using anti-static and shock-absorbing materials to ensure they arrive at the client's assembly line in pristine condition.

Frequently Asked Questions

Q: What manufacturing processes does Deeplink use for precision electronic enclosures? A: Cangzhou Deeplink employs a comprehensive manufacturing approach combining 12kW fiber laser cutting for intricate port cutouts, CNC press brakes for precise bending, and progressive die metal stamping for high-volume structural brackets. The enclosures are completed with tight flatness control and durable powder coating.

Q: How does Deeplink manage EMI/RFI shielding requirements in sheet metal housings? A: During the fabrication and finishing stages, Deeplink utilizes precise masking techniques before powder coating to ensure bare metal-to-metal contact points remain clean. This guarantees proper electrical grounding and continuous EMI/RFI shielding for sensitive electronic equipment.

Q: What quality control standards are applied to custom metal enclosures? A: Deeplink operates under an ISO 9001 certified quality system, executing over 39 QA checks per project. This comprehensive protocol covers incoming material verification, First Article Inspection (FAI), in-process dimensional monitoring, and final coating thickness evaluation before shipment.

Q: Does Deeplink provide engineering support for sheet metal fabrication? A: Yes, our engineering team conducts a thorough DFM (Design for Manufacturability) review prior to tooling. We analyze customer drawings to identify tolerance risks, optimize material usage, and suggest process improvements to reduce unit costs while enhancing product reliability.
