How Deeplink Delivered 50,000 High-Precision 304 Stainless Steel Stamping Connectors Per Month for a German Food Packaging Equipment Manufacturer

Project Background & Challenge

A leading German manufacturer of automated food packaging equipment approached Deeplink with an urgent sourcing requirement. The company needed a reliable Chinese supplier capable of producing 304 stainless steel stamping connectors — critical components used in their high-speed food sealing and filling machines.

The project came with three non-negotiable demands:

• High volume: 50,000 pieces per month with consistent batch-to-batch quality.
• Tight tolerance: ±0.05mm on all mating surfaces to ensure seamless assembly with automated packaging line modules.
• Food-grade compliance: All parts must be manufactured from certified SUS304 stainless steel, free of surface contaminants and burrs, suitable for indirect food contact environments.

The German buyer had previously trialed two other suppliers. One failed to maintain tolerance after the first 3,000 pieces; the other suffered from inconsistent surface finish that caused micro-contamination concerns during client audits.

“We needed a partner who treats ±0.05mm not as a target, but as a baseline. Deeplink understood that from day one.” — Project Lead, German Food Packaging Equipment OEM

Deeplink’s Custom Metal Stamping Solution

At Deeplink, we approached this project not as a simple stamping order, but as a full-chain precision manufacturing challenge. Our engineering team conducted a comprehensive DFM (Design for Manufacturability) analysis before the first tool was cut, identifying three critical control points that would determine success.

Phase 1: Progressive Die Design & Material Selection

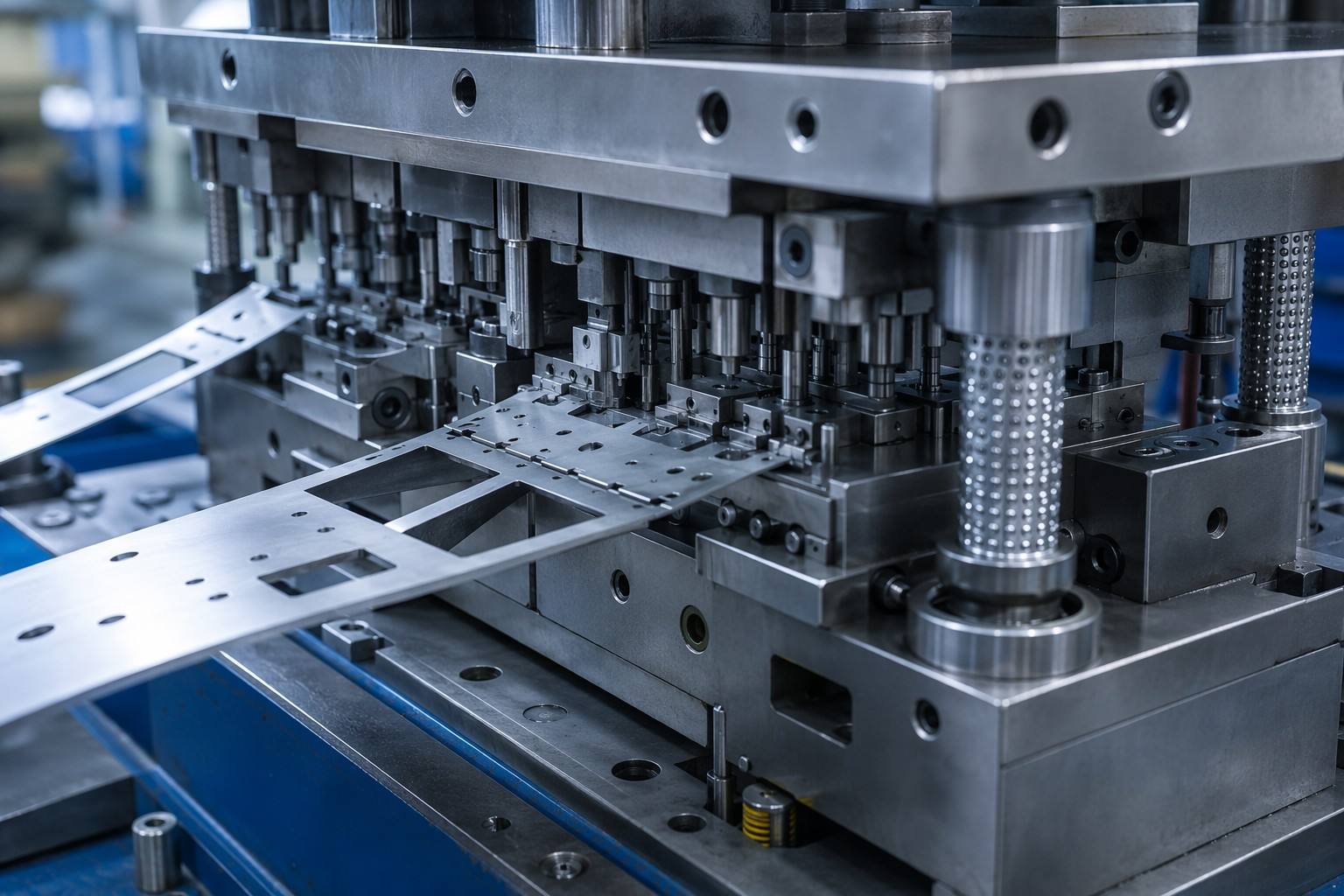

The connector geometry featured multiple bends, piercings, and two tight-tolerance locating holes. Our tooling engineers designed a 9-station progressive die optimized for 304 stainless steel’s work-hardening characteristics:

• Material: JIS G4304 SUS304 stainless steel coil, 1.2mm thickness, sourced from a Baosteel-certified mill with full material traceability certificates.
• Die material: SKD11 tool steel with TiCN coating to extend die life beyond 2 million strokes on stainless steel.
• Springback compensation: Over-bend angles calculated via FEA simulation, reducing springback deviation to under 0.02mm — well within the ±0.05mm tolerance window.

Phase 2: Precision Stamping Production

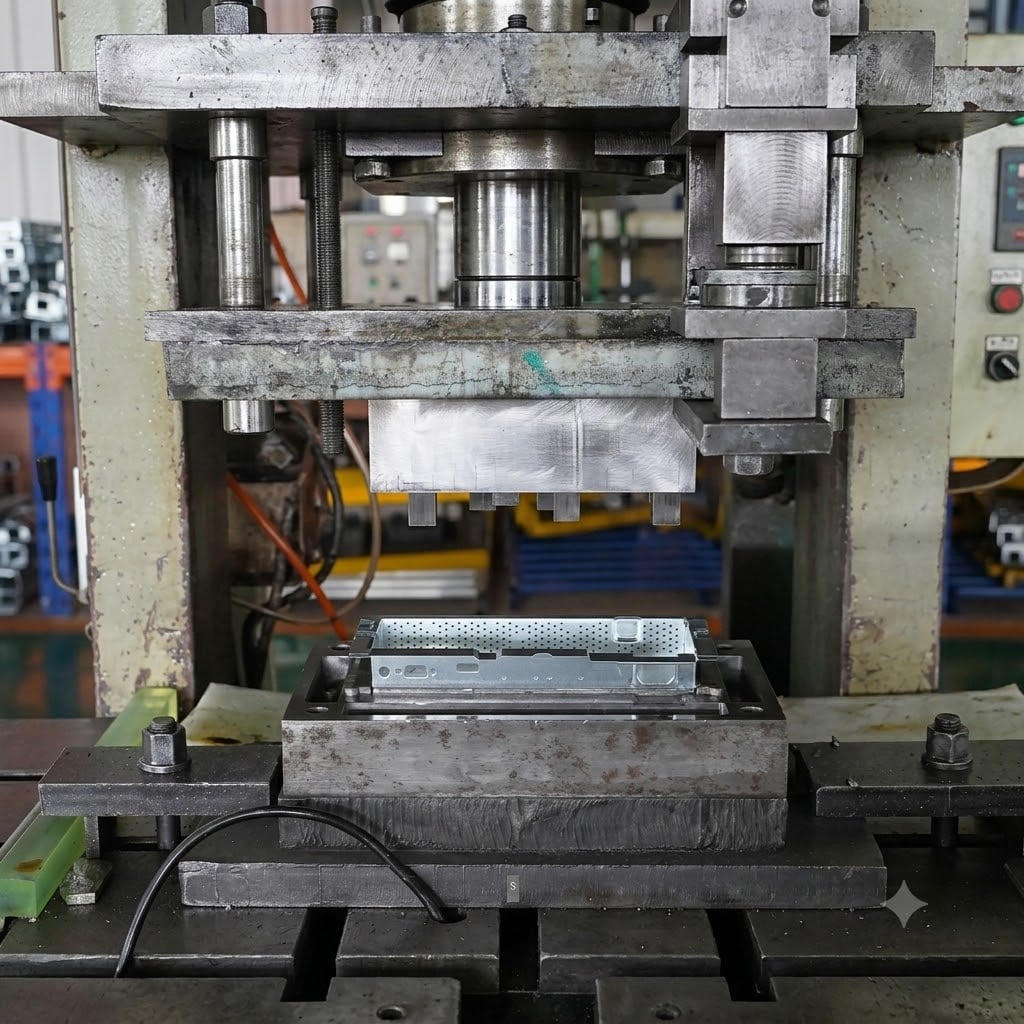

Production ran on our high-speed progressive stamping press (200-ton capacity, 60–120 SPM adjustable) with the following process controls:

The 9-station progressive die combined blanking → piercing → forming → coining → trimming in a single press stroke cycle, achieving a net output of 45–55 pieces per minute. At 50,000 pcs/month, this represented only ~20% of the press’s capacity, leaving ample room for volume scaling

Phase 3: In-Process Quality Inspection

Deeplink’s 39-point quality inspection system was deployed across three stages:

1. First-article inspection (FAI): Full dimensional report against the 2D drawing, including CMM verification of all critical-to-function dimensions. Any dimension exceeding 60% of tolerance triggers an automatic tool adjustment.
2. In-process sampling: Every 500 pieces, 10 samples are pulled for go/no-go gauge checks plus surface roughness measurement (Ra ≤ 0.8μm required, achieved Ra 0.4–0.6μm).
3. Final audit before packing: AQL 1.0, Level II sampling per ISO 2859-1, covering dimensions, burr inspection under 10× magnification, and visual surface quality check.

Phase 4: Cleaning & Packaging for Food Industry Standards

Recognizing the end-use in food packaging equipment, Deeplink implemented additional post-stamping protocols beyond standard industrial packaging:

• Ultrasonic degreasing: Removes stamping oil residues to food-industry cleanliness standards.
• Passivation treatment: Enhances the natural corrosion resistance of 304 stainless steel, critical for washdown environments in food plants.
• Anti-contamination packaging: Parts are packed in sealed PE bags with desiccant, then placed in reinforced export cartons. Each carton carries a unique QR code linking to the digital inspection report.

Project Results

After six months of continuous production, the German client expanded their order to include two additional connector variants, bringing total monthly volume to 120,000 pieces across three SKUs.

Why Global Food Equipment OEMs Choose Deeplink for Metal Stamping Parts

This project exemplifies Deeplink’s core value proposition for high-precision stainless steel stamping in regulated industries:

• ISO 9001:2015 certified manufacturing with full process traceability.
• In-house progressive die design and fabrication — no subcontracted tooling, faster lead times, tighter control.
• 80% automation rate across 6 production lines ensures consistency at scale.
• DFM collaboration from day one: our engineers speak your language and optimize designs for manufacturability before production begins.
• Food-industry awareness: we understand the unique requirements of food-grade metal parts — from material certification to contamination-free packaging.

Get a Quote for Your Custom Metal Stamping Project

Whether you need 304 stainless steel connectors, food-grade stamped components, or high-precision metal parts for any industry, Deeplink has the expertise and capacity to deliver.

Contact our engineering team today →

• Email: [email protected]
• Phone/WhatsApp: +86-18617745678
• Location: Cangzhou, Hebei, China — serving global OEMs with fast international shipping.

About Cangzhou Deeplink International Supply Chain: Deeplink is a China-based OEM manufacturer specializing in custom sheet metal fabrication, precision metal stamping, laser cutting, CNC machining, deep drawing, and welding & riveting. With over 10 years of experience and 5,000+ sqm of manufacturing space, we deliver fast, precise, and reliable metal parts to global high-end manufacturing sectors including automotive, aerospace, food equipment, new energy, and industrial automation.
